Vibration Reduction
In today’s increasingly complex drilling environments, vibration remains a pervasive and costly drilling dysfunction that plagues many operators worldwide. Caused by factors such as high side loads, dogleg severity, buckling in the drill string, and interactions between the bottom hole assembly (BHA) and formation, vibration manifests as axial, lateral, or torsional forces like stick-slip. This leads to reduced drilling efficiency, premature wear on tools and bits, poor borehole quality, and increased non-productive time (NPT)—ultimately resulting in equipment failures, slower rates of penetration (ROP), and escalated operational risks. Occurring in a majority of challenging wells, including highly deviated, horizontal, extended-reach, and high-friction formations, vibration affects up to 70-80% of global drilling programs, costing the industry billions annually in downtime, repairs, and lost production.
Paradigm has engineered innovative tools specifically to mitigate, reduce, or prevent vibration from occurring, transforming these negative forces into enhanced performance. By addressing vibration at its source, operators realize substantial value: reductions in torque by 25-40%, stick-slip minimized to under 2%, lateral vibrations cut by up to 60%, and overall NPT slashed—leading to faster drilling, extended tool life, improved wellbore stability, better weight-on-bit transfer, and cost savings every well. This not only boosts ROP and reliability but also enhances safety, reduces risk and long-term asset productivity, delivering measurable ROI in even the toughest onshore and offshore applications.

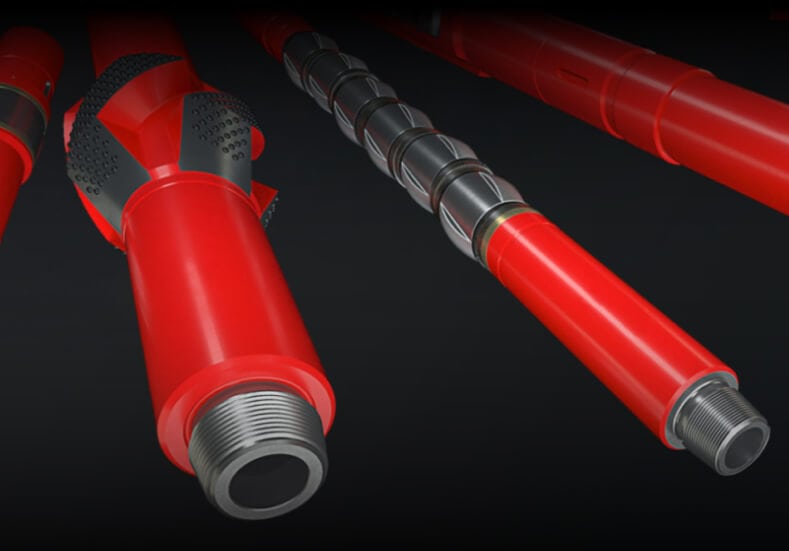

Paradigm’s proven vibration reduction solutions include Driver, Runner, Reamer and Diamond Reaming Stabilizer (DRS).
Applications
Driver® Solution Summary
Paradigm’s Driver® is a downhole traction tool that reduces vibration in drilling operations by turning side forces into forward thrust. It’s ideal for oil and gas operators drilling long horizontal or extended-reach wells where instability slows progress.
This simple mechanical device uses rollers to stabilize the drill string, cutting buckling and friction while boosting weight transfer to the bit. As a result, vibrations drop sharply, bits last longer, and drilling speed increases without extra equipment or costs.
Operators in challenging shale or deepwater fields benefit most, achieving smoother runs, fewer repairs, and lower overall expenses. With no impact on hydraulics or signals, it’s a straightforward upgrade for reliable performance.
Runner® Solution Summary
Paradigm’s Runner® is a torque and vibration reduction sub that protects drill strings by lifting them off the wellbore wall. It’s perfect for drilling teams in high-angle or horizontal wells facing excessive wear and instability.
Featuring a non-rotating sleeve and advanced bearings, it minimizes contact friction, dampens vibrations, and reduces torque buildup. This leads to cleaner holes, less casing damage, and more efficient energy use during operations.
Designed for onshore and offshore projects, it helps operators extend tool life, avoid breakdowns, and complete wells faster. Easy to integrate, Runner® delivers real savings in time and maintenance for demanding environments.

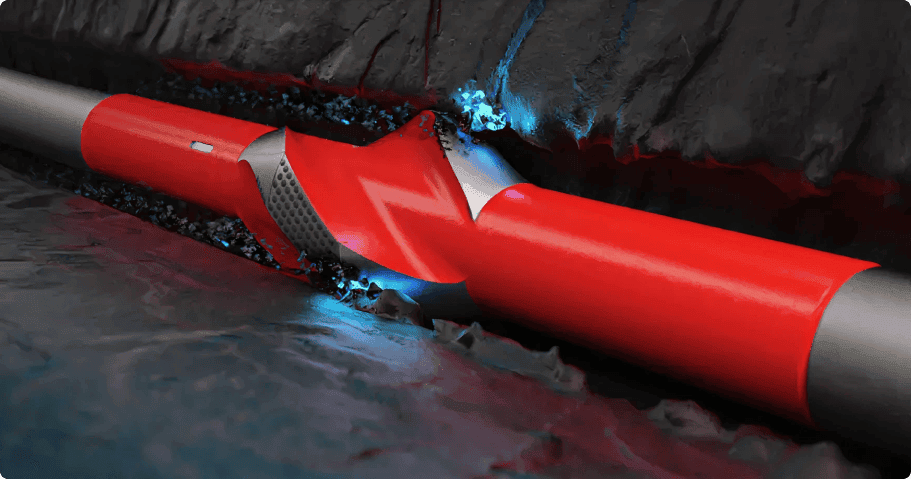

Paradigm Reamer® (Bladed Drilling Reamer) Solution Summary
Paradigm’s Reamer® is a fixed-blade drilling reamer that mitigates vibration by providing low-torque stabilization and smoothing the borehole. It’s built for drilling teams tackling complex wells where ledges, micro-doglegs, and instability cause excessive drag, torque, and downhole shaking.
Using domed diamond inserts (DDI) for reduced contact area (75-80% less than standard stabilizers), it eliminates tortuosity, removes imperfections, and maintains consistent gauge without moving parts. This delivers point stabilization, cuts vibrations from erratic motion, improves hole quality, and supports efficient forward and back-reaming.
Operators in directional, hard-rock, or abrasive sections benefit from fewer dysfunctions, reduced non-productive time, better steering accuracy, and reliable performance in long intervals. It’s a zero-risk, durable alternative to roller reamers for smoother, faster drilling.
Benefits
Paradigm’s vibration mitigation tools—Driver®, Runner®, and Reamer®—deliver concrete improvements in drilling efficiency, tool longevity, and cost control for operators facing complex wells.
- Driver®
- Reduces stick-slip (from offsets 20% to below 2%) and cuts multi-axis vibrations sharply, extending PDC bit life and minimizing mechanical damage.
- Boosts effective WOB transfer by eliminating buckling, enabling higher ROP in long laterals.
- Achieves faster section times with no added pressure drop or MWD interference, lowering NPT and operational risks.
- Runner®
- Cuts drilling torque by 25–40% immediately upon placement, stabilizing erratic torque and preventing top-drive stalls.
- Dampens string-transmitted vibrations and reduces casing/tool-joint wear, allowing consistent WOB application and improved ROP.
- Enables wells to reach TD in torque-limited scenarios, reducing drag, fatigue, and non-productive interventions for faster, safer completions.
- Reamer® (Bladed Drilling Reamer)
- Provides low-torque point stabilization with 75–80% less contact area than conventional stabilizers, eliminating ledges, micro-doglegs, and tortuosity-induced vibrations.
- Improves hole quality and gauge maintenance, supporting higher controlled ROP and zero tight spots (eliminating NPT from wiper trips or back-reaming).
- Enhances steering accuracy and tripping speed in vertical/hard-rock sections, reducing side-tracking risks and delivering the fastest ROP with full inclination control.
Vibration reduction translates into measurable savings in time, bit/trip costs, and downtime while improving wellbore integrity across directional, horizontal, and extended-reach operations.
FAQ
Why does vibration reduce the rate of penetration (ROP)?
Vibration reduces rate of penetration (ROP) by disrupting consistent bit engagement with the formation, leading to erratic cutting action and inefficient energy transfer to the rock.
In affected intervals, axial, lateral, and torsional vibrations (such as stick-slip) cause the bit to bounce, whirl, or momentarily unload, reducing effective weight on bit and depth of cut—often dropping example ROP by 10–15%. This extends drilling time by 12–36 hours on a typical 10-day well program (at $150,000 USD/day rig rate, adding $75,000–$225,000 in costs). Paradigm’s Driver® directly counters this by suppressing vibrations through axial thrust and BHA stabilization, restoring smooth, consistent cutter loading for recovered ROP and significant time/cost savings.
How does Paradigm reduce vibration in drilling operations?
Paradigm reduces vibration in drilling operations using specialized mechanical tools that target the root causes—buckling, friction, and side loads—without adding hydraulic complexity.
The Driver® converts wasted side-load energy into axial thrust, suppressing axial, lateral, and torsional vibrations while stabilizing the BHA.
The Runner® dampens string-transmitted vibrations and cuts torque by 25–40% with a non-rotating sleeve.
The Reamer® (fixed-blade) eliminates tortuosity and ledges that trigger vibration, providing low-torque stabilization. Together, these tools deliver smoother dynamics, 10–15% ROP recovery, fewer tool failures, and 12–36 hours of saved rig time on a typical 10-day well.
How does Paradigm reduce lateral vibration in horizontal wells?
Paradigm reduces lateral vibration in horizontal wells by stabilizing the BHA and eliminating sources of erratic motion like ledges or side loads.
The Reamer® (fixed-blade with domed diamond inserts) provides low-torque point stabilization with 75–80% less contact area, reaming out micro-doglegs and tortuosity that cause lateral shaking. The Driver® complements this by recycling side-load energy into axial thrust, preventing precession and whirl while the Runner® dampens transmitted vibrations. Together, they deliver smoother dynamics, better hole quality, and reduced BHA wear—example – potentially cutting 12–24 hours of related NPT ($75,000–$150,000 on land or $300,000 – $500,000 USD offshore drillship) in extended laterals.
How do Paradigm tools improve drilling in high-vibration formations?
Paradigm tools improve drilling in high-vibration formations by addressing root causes like friction, buckling, and borehole irregularities in abrasive or hard-rock sections.
The Reamer® and DRS use domed diamond inserts for gauge maintenance and low-torque reaming to eliminate ledges/stringers that trigger vibrations. The Driver® recycles side loads into thrust for dynamic stability, while the Runner® cuts torque and dampens vibrations. This integrated approach reduces multi-axis dysfunction, enhances tool reliability, and supports consistent performance—delivering 5–15% cost savings ($75,000–$225,000 example on land or more even offshore) through fewer hours of downtime and longer, trouble-free runs.
How does the Paradigm Driver mitigate multiple drilling dysfunctions?
The Paradigm Driver® mitigates multiple drilling dysfunctions at once by converting wasted side-load friction into productive axial thrust using six rollers in a “caterpillar” motion.
It simultaneously reduces drillstring buckling, improves weight-on-bit transfer, suppresses stick-slip and torsional vibration, dampens axial and lateral vibration, and stabilizes the BHA without any added hydraulics or pressure drop. This multi-dysfunction control delivers consistent cutter engagement, extends bit life, boosts ROP and cuts NPT—saving 12–36 hours ($75,000–$225,000 at $150,000/day rig rate) on a typical 10-day well program in long laterals or extended-reach wells.
