ParaSheave™

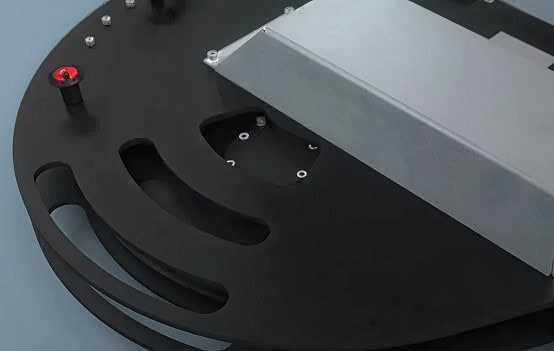

The ParaSheave™ is an intelligent sheave assembly that guides the wire into the well and at the same time is integrated with measuring sensors for Depth, Speed and Tension. The ParaSheave™ is mounted on top of the ParaComm™ Antenna, 10K, with Stuffing Box. The ParaSheave™ is equipped with explosion proof certified electronics to communicate depth, speed and tension data to the ParaComm™ Antenna that is connected to the ParaComm™ Data Processing Panel.
By using the ParaSheave™ there is no need for a conventional measuring head system that is normally installed on the winch unit.
A top-slung variant of the ParaSheave™ is available for operations which prohibit the installation of the ParaComm™ Antenna onto the wellhead.
Features
- Hardened aluminum wheel with lowest friction and highest corrosion resistance
- Integrated design with encoder for Depth, Speed and Loadpin for 2T line tension
- Quick release EX PoE snap connectors
- Easy wire installation with spring leave
- Easy replacement of encoder, loadpin and bearings
- Eye Clevis for use as top sheave (option: wire cutter)
Benefits
- Reliable and most accurate depth measurement by 180° line contact and lowest slippage
- Significant increase of life-time of cable (by absence of conventional measuring head)
- Low friction for exceptional durability of both cable and wheel
- Zero maintenance for sheave design with enclosed bearings
