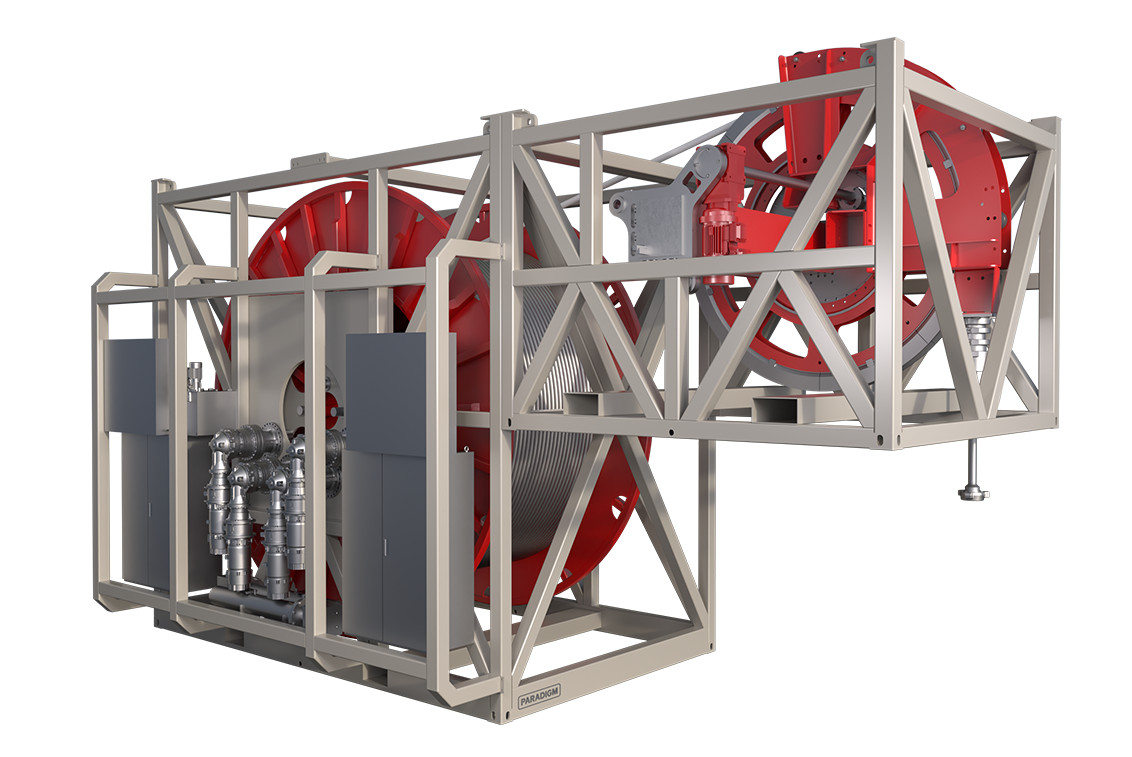

E200 Coiled Tubing Downline System
Paradigm’s all-electric E200 Coiled Tubing Downline System is designed for efficient deployment and retrieval of coiled tubing from multi-service vessels and offshore facilities.
Featuring a compact footprint and full redundancy, this system comprises a matching pair of reel skids that can be operated simultaneously or independently.
The E200 range comprises three main modules — the Power Module, the Reel Module, and the Over-Boarding Sheave Module. Each skid is equipped with an all-electric dual inverter drive system, liquid-cooled, powering compact PM motors through a ring gear Drop-In-Drum drive mechanism, with internal multi-disk fail-safe brakes ensuring precise control and reliable performance. The detachable level-wind sheave enables software-assisted auto-spooling and multiple pipe diameter handling via removable inserts.
With its three-piece modular design, the E200 maintains a combined ‘Single-Lift’ configuration for quick vessel mobilisation, with Drop-in-Drums and separate transport cradles for efficient handling and installation.
For more technical details, please refer to the datasheet or contact Paradigm for additional information.
Applications
- Riserless Deepwater Intervention
- Subsea pipeline pre-commissioning and decommissioning
- Well stimulation
- Hydraulic intervention
- Sour service operations (NACE MR0175/ISO 15156)
Features
- Single-lift 'Plug & Play' modular system (Power, Reel, and Over-Boarding Sheave modules)
- Twist lock frame-to-deck interface
- Intuitive joystick and handheld remote control with camera visualisation
- Electronic pay-out, tension, and speed visualization with software-assisted auto-spooling
- Detachable level-wind sheave with removable inserts for multiple tubing diameters
Benefits
- Compact footprint
- Minimized crew requirements
- Precise deployment/recovery speeds
- Energy efficient, no hydraulic system losses
- No emissions, low noise
- Low cost of operation
- High availability/uptime
FAQ
What is the E200 Coiled Tubing Downline System used for?
The E200 is used for riserless intervention, subsea pipeline pre-commissioning and decommissioning, well stimulation, and hydraulic intervention from multi-service vessels and offshore facilities.
What coiled tubing sizes can the E200 handle?
The E200’s level-wind sheave accommodates tubing sizes from 2″ up to 3.5″ OD, with removable inserts for handling multiple pipe diameters on the same unit.
What is the power supply requirement for the E200?
The E200 operates on 380–480 VAC, 50–60 Hz, with a dual power supply input of 2x 200A for maximum performance. It can also run at reduced power/speed and connect to the grid, a generator set, or a battery bank.
What is the maximum reel capacity of the E200?
Depending on tubing size, the E200’s Reel PR201 holds up to 4,729 m (15,514 ft) of 2.000″ OD tubing, or 3,540 m (11,600 ft) of 2.875″ OD tubing; the larger Reel PR202 holds up to 1,758 m (5,768 ft) of 3.500″ OD tubing.
Is the E200 certified for hazardous (Zone 1/2) offshore areas?
Yes, the E200 is available with an ATEX/IECEx Zone 1 or 2 certified drive system, and complies with DNVGL-ST-E273 R30 offshore lifting standards, the Machinery Directive 2006/42/EC, and API PSL 2 NACE MR0175/ISO 15156 for sour service.
