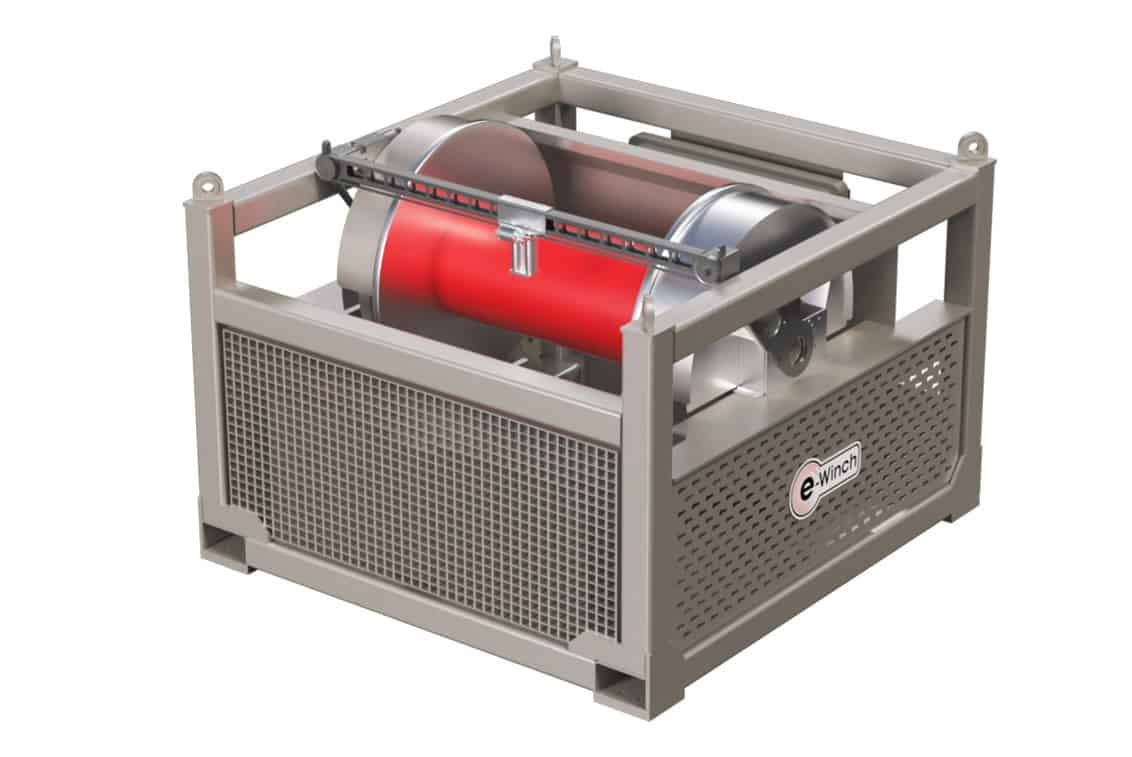

E30 SD e-Winch®
The E30 Single Drum e-Winch® design is based on the latest standard in electric drive technology. Electric power from grid supply or generator is directly converted into winch motion by servo motor and inverter technology.
The single lift winch unit has a single drum winch arrangement with easy exchangeable drums.
The E30 is designed for cased hole operations and can accept Paradigm’s PD10 drum, bearing wireline cable such as 5/16”. NOV Elmar ASEP style winch drums also fit in the winch unit.
The winch is controlled with a removable winch control panel. This allows the winch to be controlled at the winch location or from another location near the winch.
For more technical details, please refer to the datasheet or contact Paradigm for additional information.
Applications
- Efficient wireline operations
- Slickline mechanical services
- Digital Slickline operations
- Heavy duty fishing operations
- Cased hole logging services
Features
- Standard joystick control
- Electronic depth, tension and speed visualization
- Rig safe certified drive system
- Advanced safety functionality
- Continuous operation
- Automatic brake function test
Benefits
- Minimized crew requirements
- Ultra-slow logging speeds
- Unmatched jarring performance
- Energy efficient, no hydraulic system losses
- No emissions
- Reduced environmental risks
- Low cost of operation
- Maintenance free and high availability
- Low noise
FAQ
What operations is the E30 Single Drum e-Winch® optimized for?
The E30 Single Drum e-Winch® is specifically designed for cased hole wireline operations, including jacketed wireline services and heavy-duty fishing operations. Its precise electric drive system ensures smooth, stable, and ultra-slow logging speeds, making it ideal for sensitive or complex well interventions.
How does the E30 Single Drum e-Winch® enhance safety during wireline operations?
Equipped with advanced servo motors, liquid-cooled high-torque motors, and intelligent software, the e-Winch® delivers instant torque, rapid stopping, and automatic jarring. Operator-defined safety parameters help prevent overpulls, pull-offs, or other unsafe conditions, reducing crew intervention and increasing operational confidence.
What makes the E30 Single Drum e-Winch® environmentally friendly and cost-efficient?
Being fully electric, the E30 Single Drum e-Winch® eliminates hydraulic losses and direct CO₂ emissions. Its high-efficiency design and optional energy recovery system reduce energy consumption and operational costs. With minimal maintenance requirements, low noise, and no exhaust emissions, it supports environmentally responsible, low-carbon operations.
Can the E30 Single Drum e-Winch® operate with limited or variable power supply?
Yes. The system works efficiently across a range of grid voltages (380–480 V, 50–60 Hz) and can automatically adjust line speed or tension to match available power. For demanding applications, an optional high-power 125 kW / 180 A drive system is available, ensuring consistent performance even in low-power scenarios.
What optional hardware and software can be integrated with the E30 Single Drum e-Winch®?
The E30 Single Drum e-Winch® can be customized with offshore-rated lifting frames, ATEX/IECEx certified drive systems, remote radio control, integrated PM08 measuring heads, and well control sensors. Optional software products include Ai-Winch™ autonomous operation, ParaLife™ line management, automated jarring, constant tension control, remote monitoring, and third-party logging system integration.
