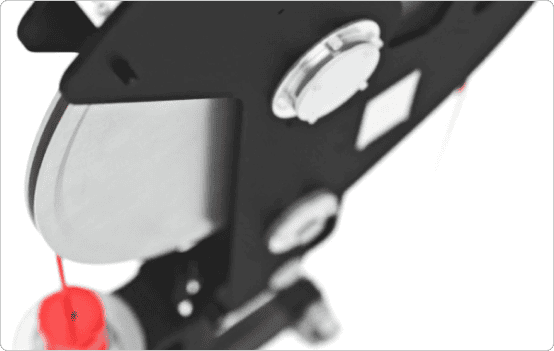

ParaSheave measurement technology for well intervention

Slick-E-Line®, HS (OD/ID 0.160/0.125)

Paradigm Slick-E-Line® is a polymeric precision-coated alloy slickline. The formulated polymeric coating combines superior abrasion and corrosion resistance with electrical insulation, enabling standard mechanical slickline operations at significantly lower friction and bi-directional data communications with a battery-powered downhole tool string.
Alternative lengths such as 29.5kft and 34.5kft are available, as well as other variants which include higher breaking strengths with larger diameters (e.g. 0.135” & 0.160”) and increased H2S resistant cables.

Below a system overview comparing capabilities of different E-Line technologies.

Slick-E-Line System Comparison Clean comparison matrix of conventional E-Line configurations and Slick-E-Line Digital Slickline across well intervention capabilities. Slick-E-Line® System Comparison Capability matrix for various conveyance types CoaxialE-Line Polymer JacketedE-Line Tubing EncapsulatedE-Line Slick-E-Line®Digital Slickline Greaseless PCE Torque Balanced Compact Cross-Section Gas Blocked (No Void Space) Very High Fatigue Life Ability to Mechanically Jar Surface Power Supply Downhole Power Supply High SRO Data Rates Line fishable ?

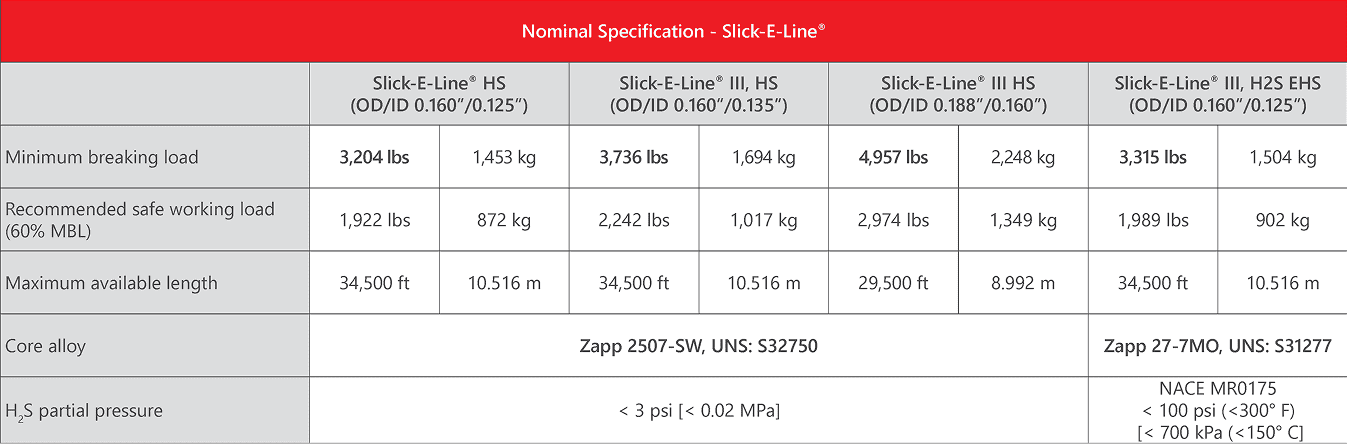

Nominal Specification - Slick-E-Line Nominal mechanical and material specification for Slick-E-Line digital slickline product variants. Nominal Specification - Slick-E-Line® Slick-E-Line® HS (OD/ID 0.160"/0.125") Slick-E-Line® III, HS (OD/ID 0.160"/0.135") Slick-E-Line® III HS (OD/ID 0.188"/0.160") Slick-E-Line® III, H2S EHS (OD/ID 0.160"/0.125") Minimum breaking load 3,204 lbs 1,453 kg 3,736 lbs 1,694 kg 4,957 lbs 2,248 kg 3,315 lbs 1,504 kg Recommended safe working load (60% MBL) 1,922 lbs 872 kg 2,242 lbs 1,017 kg 2,974 lbs 1,349 kg 1,989 lbs 902 kg Maximum available length 34,500 ft 10.516 m 34,500 ft 10.516 m 29,500 ft 8.992 m 34,500 ft 10.516 m Core alloy Zapp 2507-SW, UNS: S32750 Zapp 27-7MO, UNS: S31277 H2S partial pressure < 3 psi [< 0.02 MPa] NACE MR0175 < 100 psi (<300° F) [< 700 kPa (<150° C)]
Slick-E-Line technical specification and performance datasheet
